Hot Spring Spas Hot Spot Relay

You are here: Home / Hot Tubs / Hot Spring Spas Hot Spot Hot Tubs / Hot Spring Spas Hot Spot Relay

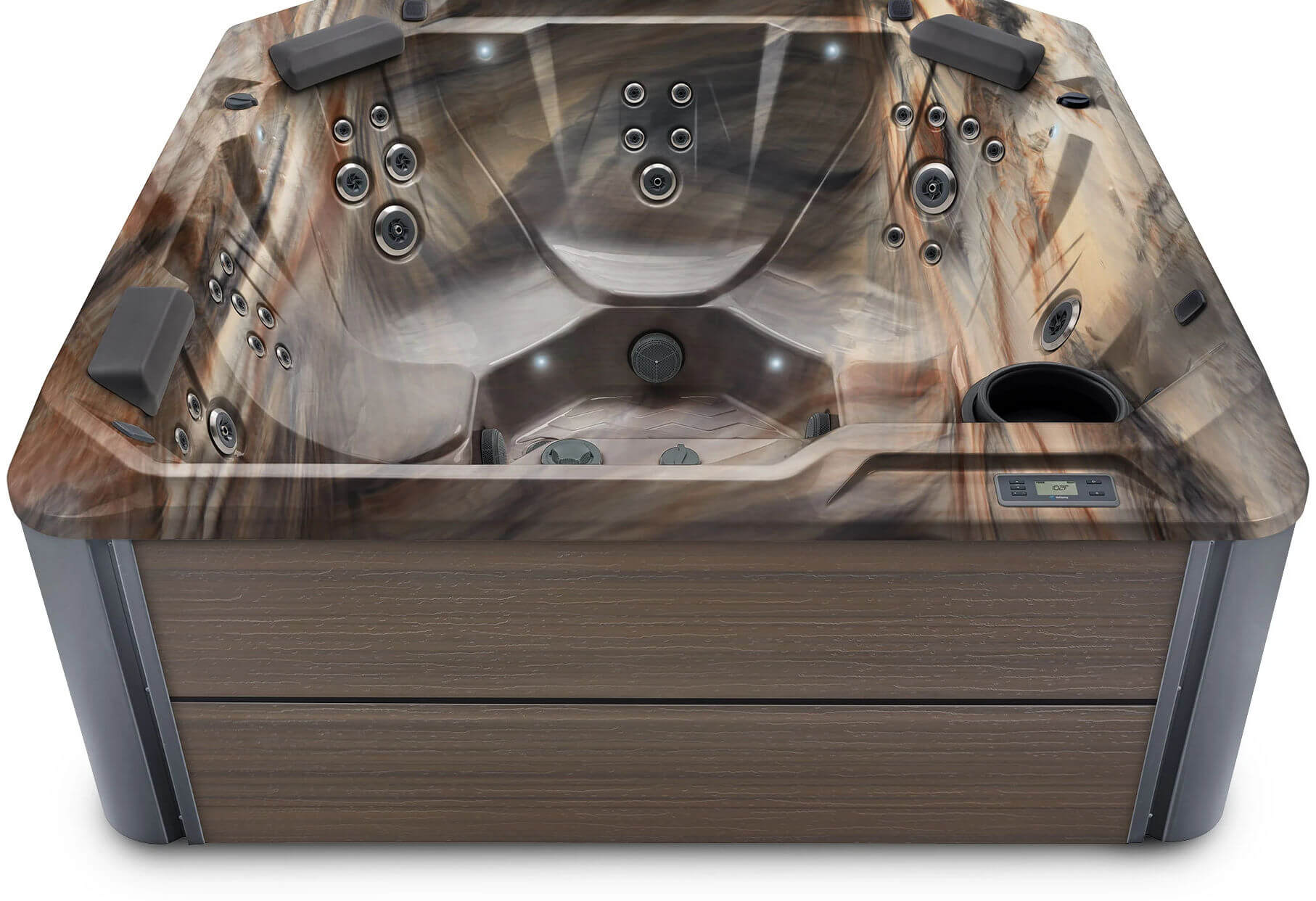

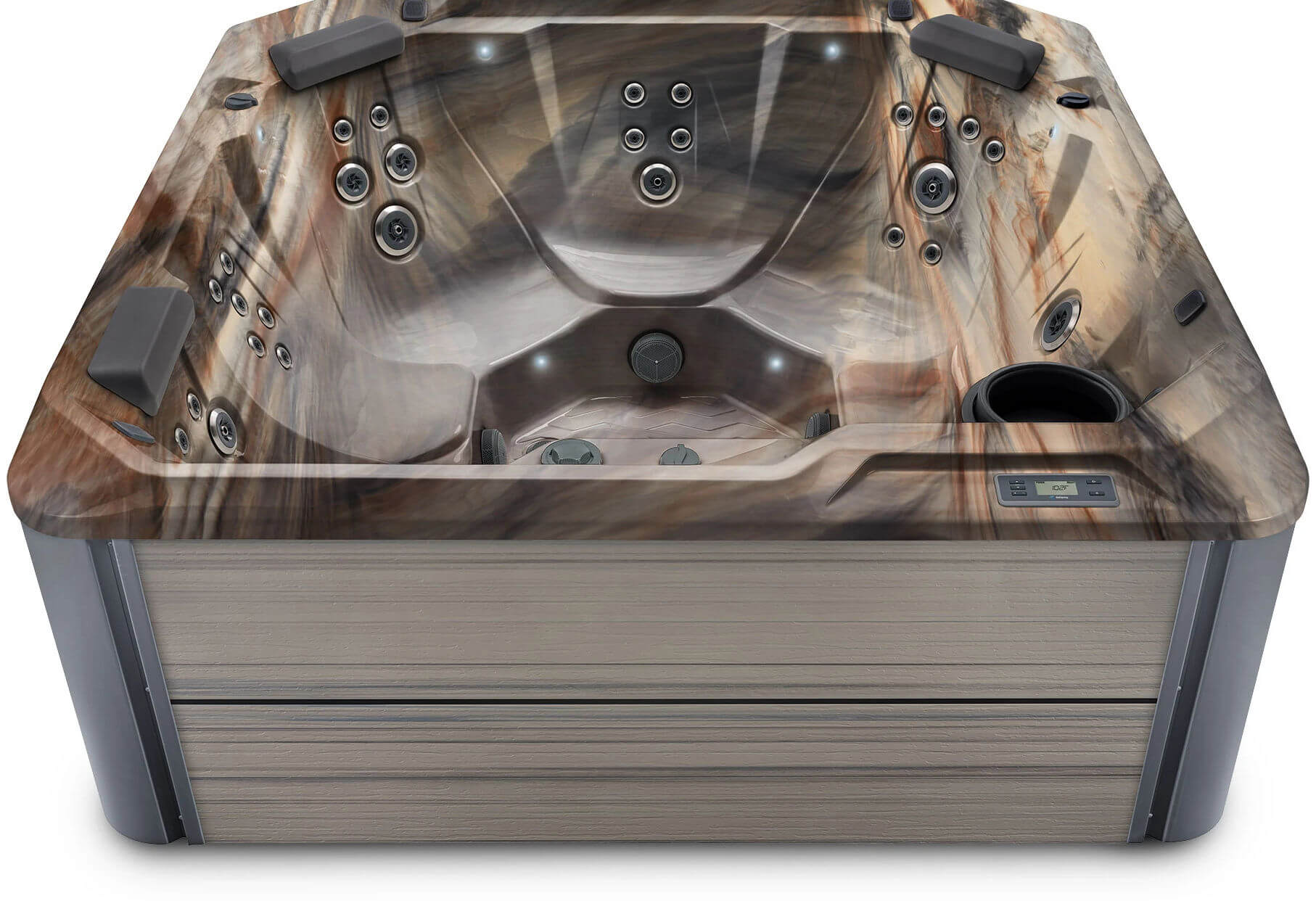

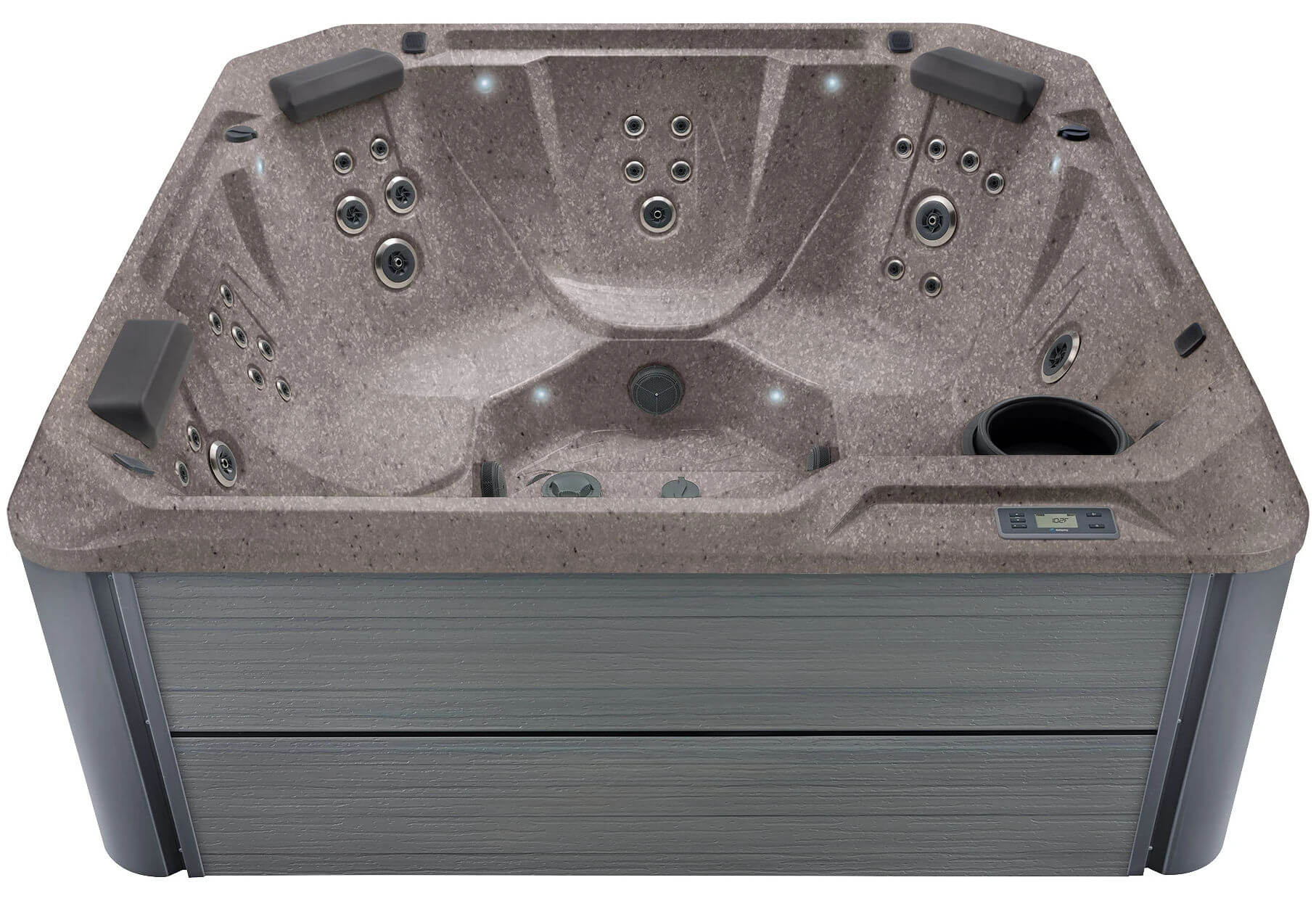

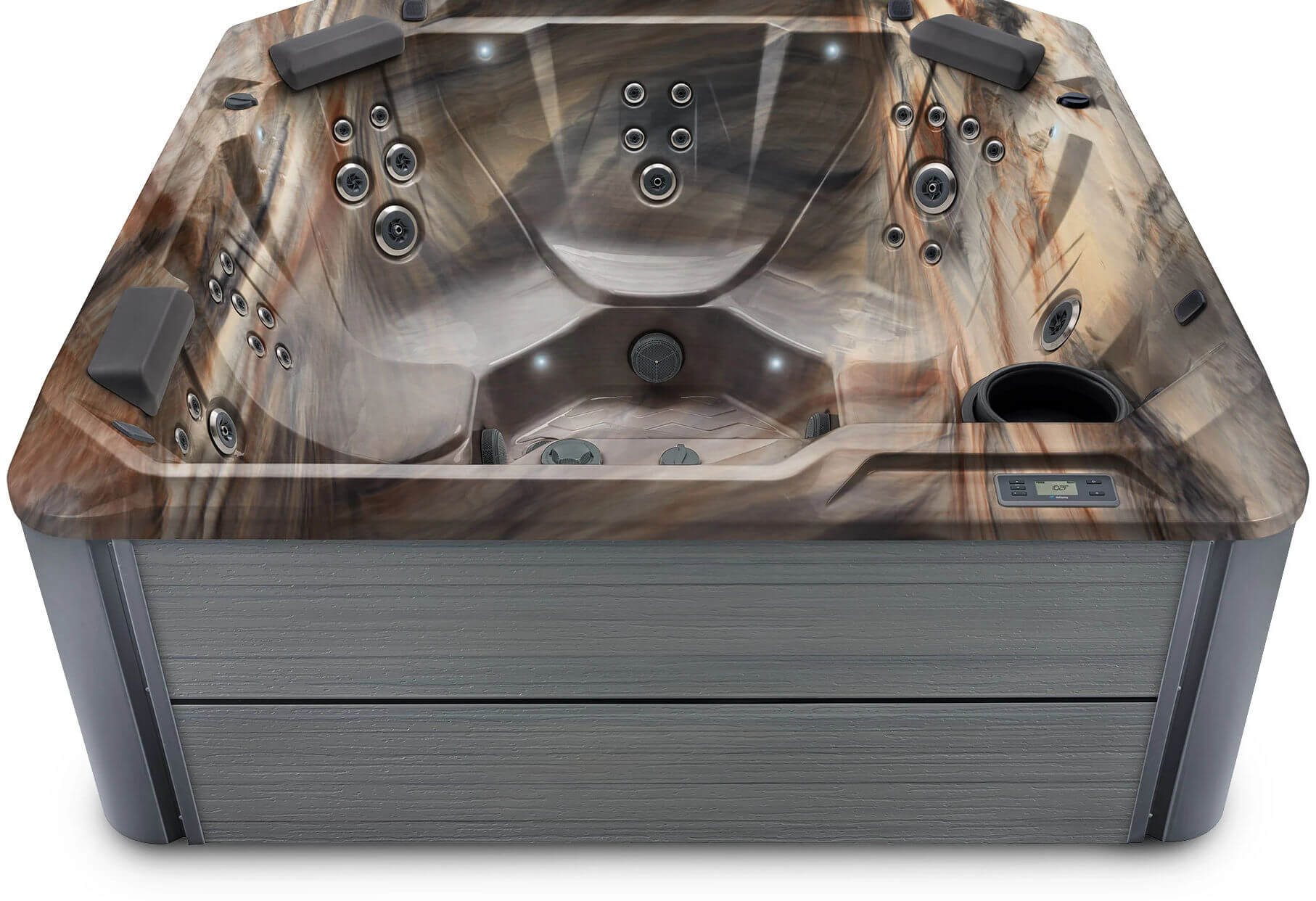

Hot Spot Relay Hot Tubs

Redesigned for 2020, you’ll find your perfect seat in the versatile Hot Spot Relay. There’s plenty of room for a group, or stretch out for a solo soak and enjoy soothing massage from neck to toe.

With seating for six, cushioned headrests and 35 targeted jets, you’ll love relaxing in the 340-gallon Hot Springs Spas Hot Spot Relay.

This value-packed spa is FiberCorTM insulated and comes with a NoFault® heater. It also comes with dimmable multi-color LED lights for added ambience.

  • $149/month*
  • Seating: 6 Adults
  • Lounge Seat: Yes
  • Size: 7′ x 7′ x 36″
  • Water Care: FROG® Inline Cartridge Ready

*Monthly payment is based on purchase price alone excluding taxes.  Credit purchases subject to credit approval. Other transactions may affect the monthly payment. Offer expires [12/31/2021]. Ask for details.

Hot Spring Spas

Learn More About the Relay for a Relaxing Retreat You Can Afford

Product Specs

Price $$$$$
Seating Capacity 6 Adults
Dimensions
7′ x 7′ x 36″
2.13m x 2.13m x 0.92m
Water Capacity
340 gallons/1,290 liters
Weight
830 lbs./375 kg dry
4,715 lbs./ 2,140 kg filled*
Spa Shell Options
  • Alpine White
  • Pearl
  • Pebble
  • Tuscan Sun
Cabinet Options
  • Almond
  • Havana
  • Storm
Jet Count
40
Hot Tub Jets
  • 3 XL Directional Hydromassage jets
  • 2 XL Rotary Hydromassage jets
  • 3 Directional Hydromassage jets
  • 2 Rotary Hydromassage jets
  • 30 Directional Precision® jets
Lighting System
  • Interior: 10 multi-color LED points of light, dimmable
  • Exterior: 4 multi-color LED points of light, dimmable
Water Features
  • Included
Control System
  • IQ 2020®
  • 230v/50amp, 60Hz
  • Includes G.F.C.I. protected sub-panel
Heater
  • No-Fault®, 4000w/230v
Energy Efficiency
FiberCor® Insulation; Certified to California Energy Commission (CEC) and APSP 14 energy efficiency standards for portable spas
Jet Pump 1
  • Wavemaster® 6200
  • Two-speed
  • 1.5 HP Continuous Duty
  • 3.2 HP Breakdown Torque
Jet Pump 2
  • Wavemaster® 6000
  • One-speed
  • 1.5 HP Continuous Duty
  • 3.2 HP Breakdown Torque
Water Care System
  • FROG® In-Line Cartridge Ready
Ozone System (Optional)
  • FreshWater® III Corona Discharge
Effective Filtration Area
65 sq. ft., top loading filters
Vinyl Cover
  • 3.5″ to 2.5″ tapered
  • 2 lb. density foam core
Entertainment systems (optional)
  • Wireless Sound System
Cover Lifters (Optional)
CoverCradle®, CoverCradle II®, UpRite®
Steps (Optional)
  • Everwood® – Almond, Havana and Storm
  • Polymer – Ash
*Includes water and 6 adults weighing 175 lbs. each
Export models available in 240v, 50Hz, 2000w heater

Jets

Hot Spot Spas are designed to become a part of your everyday life. These spas offer jets that help you feel your best, in a package that fits your budget and your lifestyle.

THE PERFECT MASSAGE

Hot Spot Spas from Hot Spring feature jets that relieve tension in your neck, shoulders, back, calves and feet.

  • Directional Hydromassage jets provide targeted relief to problem areas with easy-to-turn nozzles
  • Rotary Hydromassage jets create a rotating stream of water for a varies massage sensation
  • Directional Precision® jets are targeted to relieve tension in focused areas

Energy Efficiency

All Hot Spring spas offer Energy Smart® features, which helps your spa deliver the best value over time.

LOCK-IN HEAT

Hot Spot spas feature innovative FiberCor® insulation, which completely fills the spa cabinet to provide 4 times denser insulation than standard ½ lb. foam. Hot Spot spas also offer the following Energy Smart® features:

  • Custom-designed spa covers offer a tight seal to lock in heat
  • Our No-Fault® heater that maximizes heat transfer and is covered by an unconditional 2-year warranty
  • SmartJet® system lets you direct power only to the jet groups you want to use
  • Dimmer-controlled LED lights that use less energy

Spa Water

You have a few choices for easy water care maintenance.

@EASE® WITH SMARTCHLOR®

Every Hot Spot spa comes ready with this easy in-line system. Insert prefilled cartridges to automatically release SmartChlor chlorine and minerals for easy care and softer–feeling water.

FRESHWATER® OZONE SYSTEM

Keep your water clean and clear, while reducing the need for chlorine. This system combines the cleaning power of the FreshWater® III high-output ozone generator with MPS non-chlorine oxidizer and silver ions for protection against contaminants.

FRESHWATER CHLORINE

For those who prefer a more traditional approach, we offer a complete line of FreshWater bottled products for a complete maintenance program designed especially for use in your Hot Spot spa.

Design

Hot Spot Spas feature attractive shell and cabinet designs that will integrate beautifully into your backyard. Colorful lighting and soothing waterfalls (on select Hot Spot models) add to the fun.

SIMPLE AND STUNNING

With quality craftsmanship that only comes from Hot Spring Spas, Hot Spot model owners will enjoy the benefits of spa ownership for years to come. All Hot Spot Spas feature the following:

  • Stylishly sculpted, comfortable shells
  • Beautiful, yet durable, Everwood siding in three colors
  • Elegant shell colors ranging from pearlescent to granite-like

The Tempo, Rhythm, and Relay models also feature a relaxing waterfall, and 10 points of multi-color lighting.

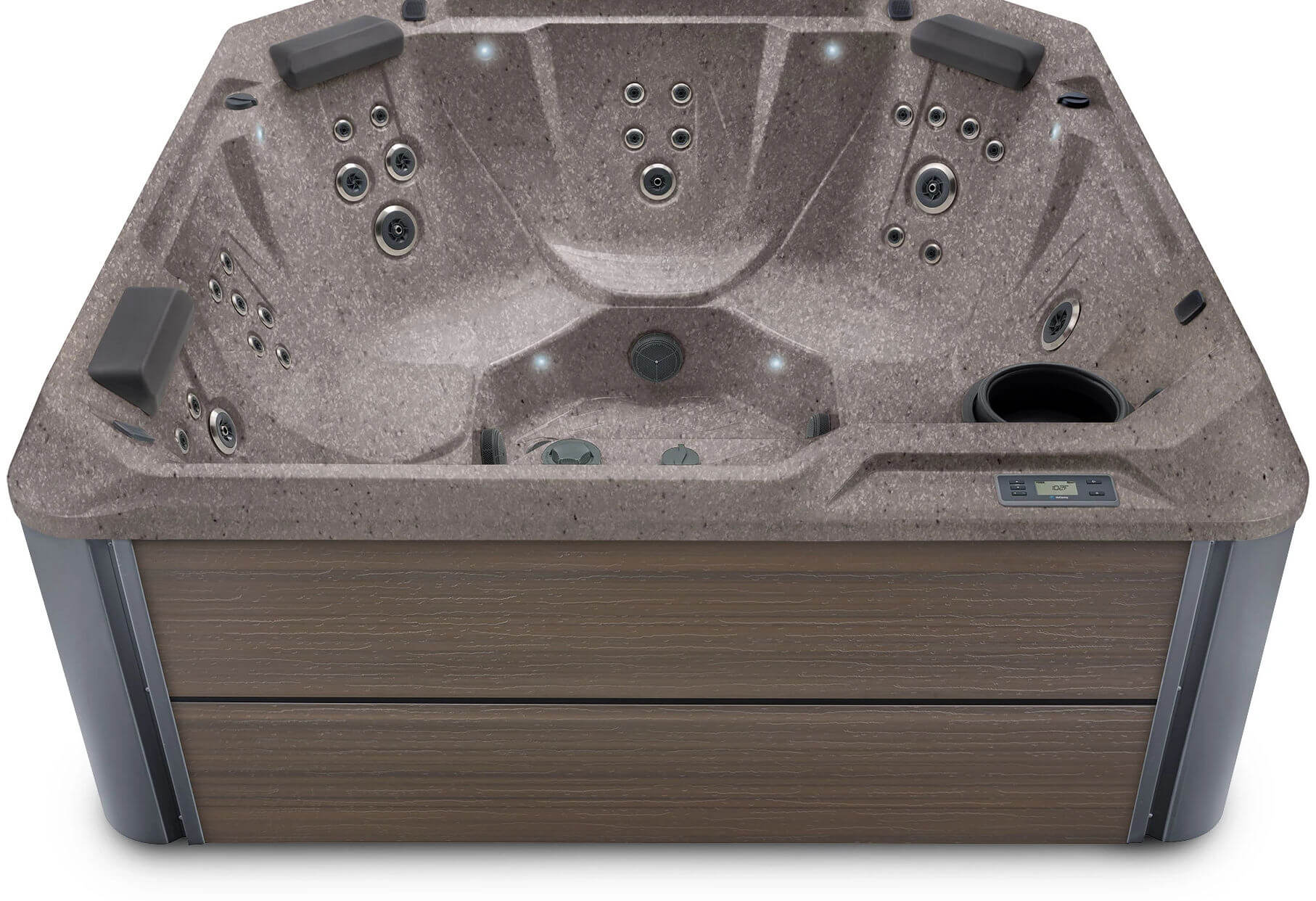

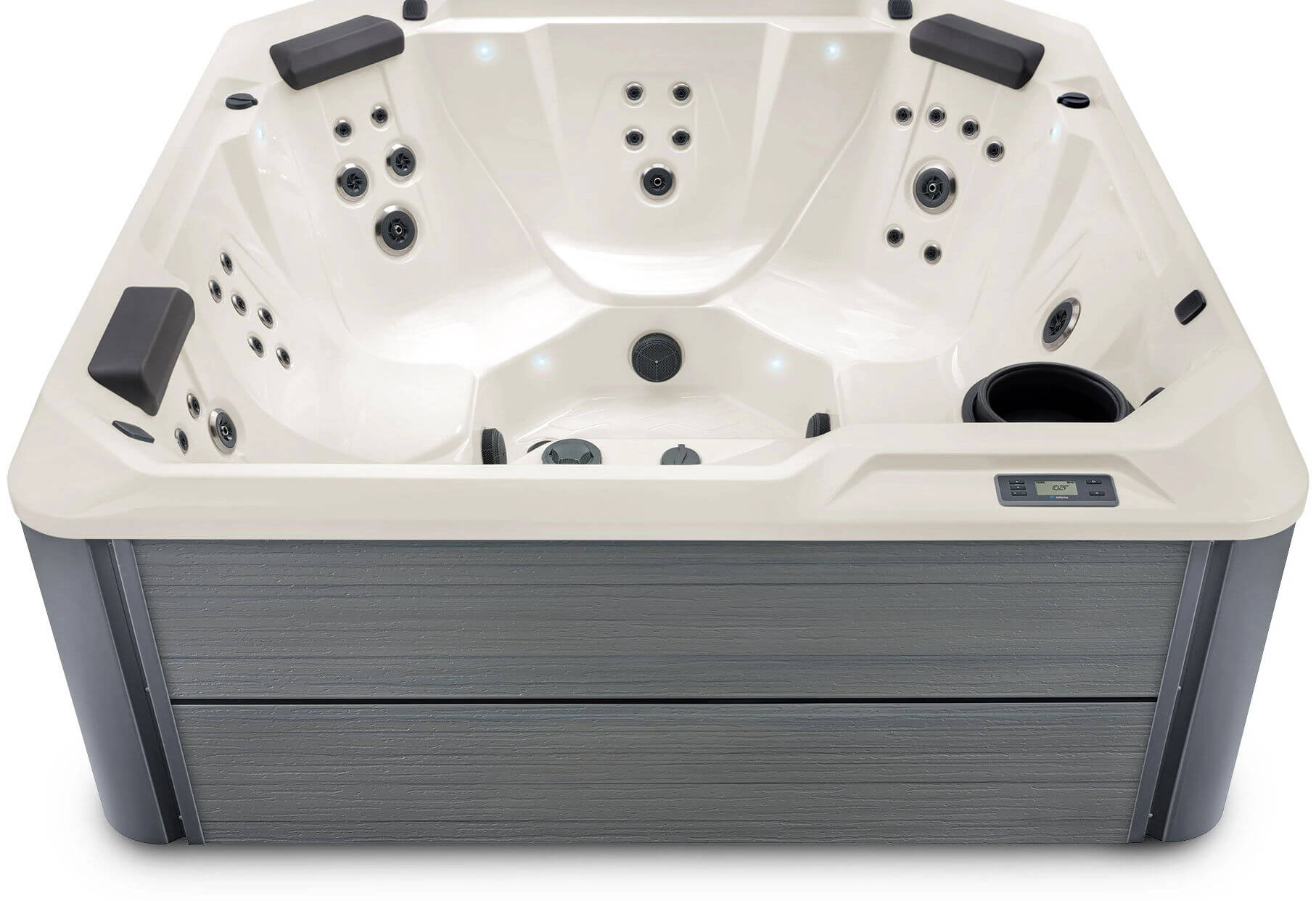

hot spot relay
hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay hot spot relay
Download 2021 Spec Sheet

Accessories and Features

everfresh

Easy Water Care

The FROG® @ease® In-Line System uses pre-filled cartridges that automatically release sanitizer to keep water clean and clear.

This water sanitizer combines FROG minerals and the breakthrough innovation – SmartChlor® Technology. The result is Fresh Mineral Water™ that’s cleaner, clearer and softer than standard hot tub treatments, requiring less chlorine use and easy maintenance. The system is available for use on Hot Spot® spas.

  • Kills bacteria using 75% less chlorine* than traditional methods
  • Kills bacteria two ways with chlorine and silver (minerals)
  • Reduces shocking to only once a month; no need for daily or weekly maintenance
  • SmartChlor cartridges last up to four weeks, depending on use
  • Mineral cartridges last up to four months, depending on use
  • No chlorine smell or faded swimwear
  • Can be combined with the FreshWater® ozone system for the ultimate in water care

coverlifter

Cover Lifters

Our exclusive cover lifters make it quick and easy to access your spa – so you’ll use it more often, plus they keep your spa cover off the ground helping it to last longer.

entertainment

Entertainment Systems

Hot Spring Spas offers a variety of entertainment options, so you can enjoy your favorite music in the comfort of your spa.

Enjoy entertainment wirelessly as you wind down in your spa, by streaming music live or listening to your own music library from your Bluetooth® enabled device.

steps

Spa Steps

Making it easy to climb in and out your spa, Hot Spring spa side stairs are designed to match your spa cabinet.

Choose from a variety of styles and colors

energy saving

Energy Saving Features

Exclusive FiberCor® insulation and EnergySmart® features keep your water hot and energy costs low.

simple operation

Simple Operation

Intuitive buttons and a large, easy-to-read LCD screen make it simple to use your spa.

Easy Maintenance

A convenient floor drain means no bailing during scheduled water changes.*

*Available on 2020 models.
