Hot Spring Spas Limelight Prism Hot Tubs

Stunning lights meet powerful jets.

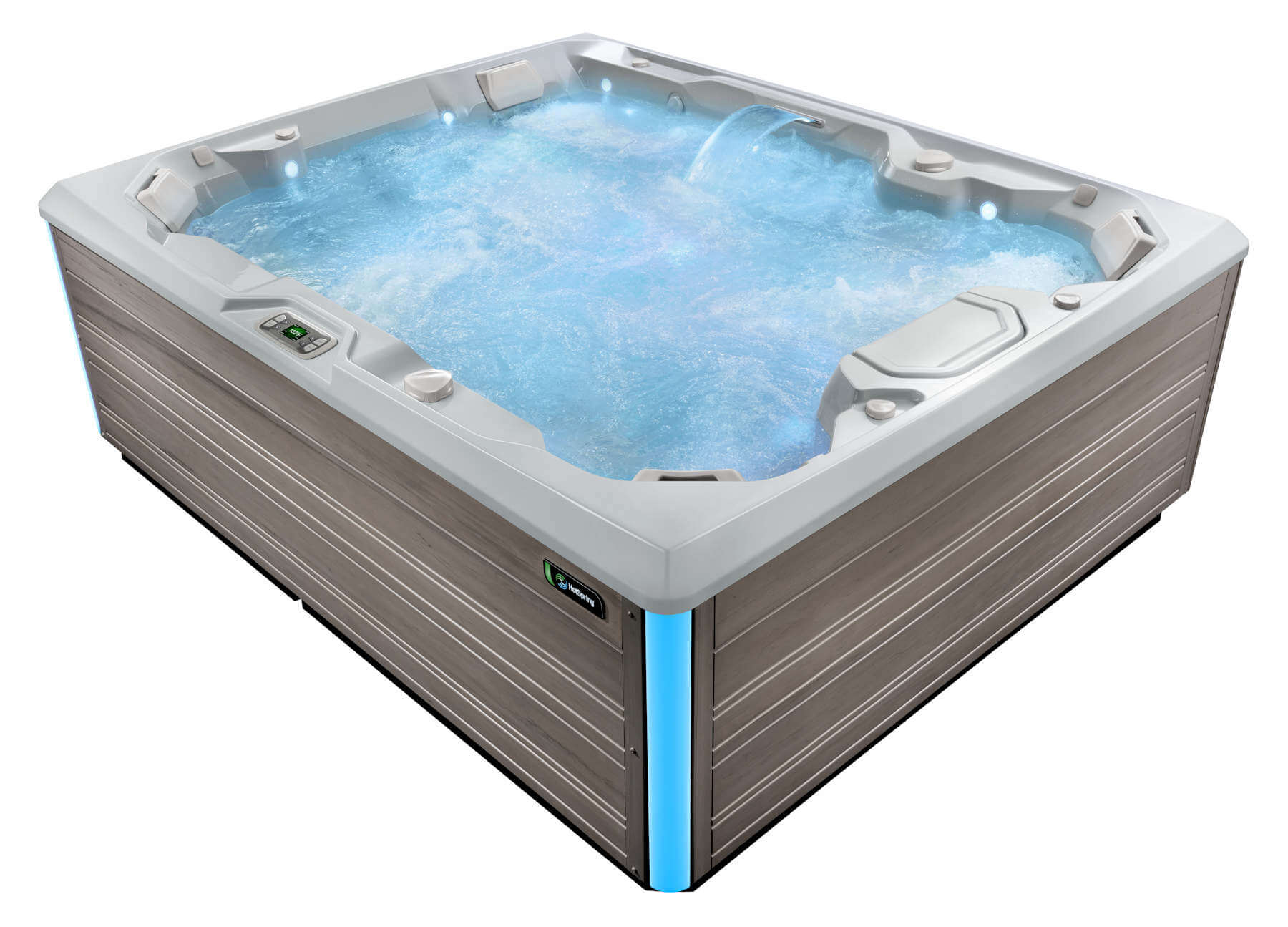

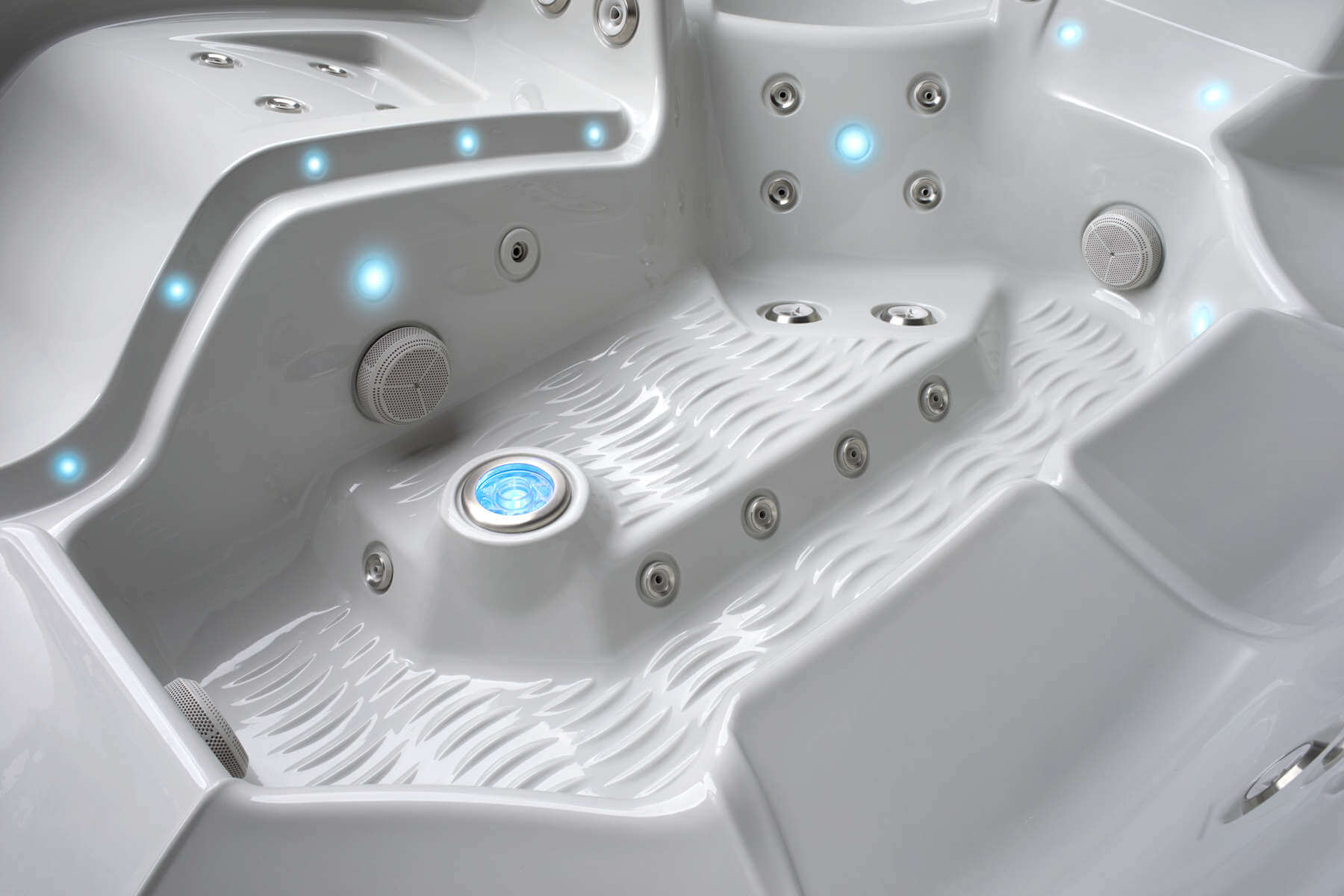

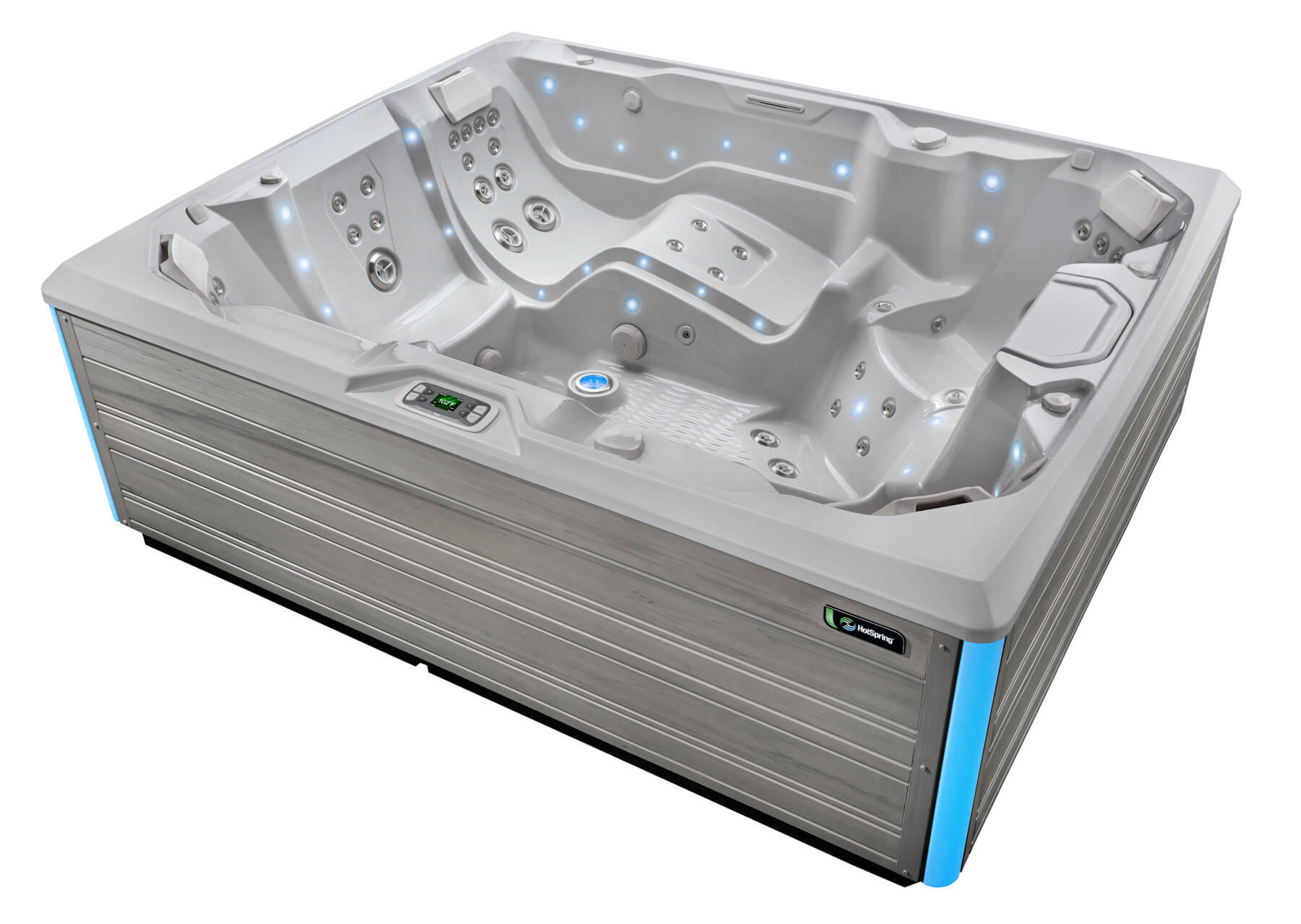

The largest spa in the Hot Spring® Limelight® Collection, Prism seats seven adults and features a relaxing lounge, plus an Adirondack-style seat with wrist, calf and foot therapy jets. The footwell includes a powerful, extra-large jet for enhanced foot and leg massage, along with several precision directional jets in corner and side seats.

Hot Spring Spas

Learn More About the Limelight Prism for Wellness, Relaxation and Massage

Product Specs

Seating Capacity
7 Adults
Dimensions
7’7” x 9’2” x 38”
2.31m x 2.79m x 0.97m
Water Capacity
525 gallons/1,990 liters
Weight
1,190 lbs./540 kg Dry;
6,795 lbs./3,085 kg Filled
Jet Count
73
Hot Tub Jets
  • 1
  • 1
  • 2
  • 3
  • 7
  • 4
  • 4
  • 10
  • 41
Lighting System
  • Raio® multi-color interior points of light (38)
  • Exterior multi-color lighting with timer
Water Features
  • Vidro® backlit ribbon waterfall
Control System
  • IQ 2020® with LCD control panel
  • 230v/50amp, 60Hz
  • Includes G.F.C.I. protected sub-panel
Heater
  • No-Fault®, 4000w/230v
Jet Pump 1
  • Wavemaster® 9200
  • Two-speed
  • 2.5 HP Continuous Duty
  • 5.2 HP Breakdown Torque
Jet Pump 2
  • Wavemaster® 9000
  • One-speed
  • 2.5 HP Continuous Duty
  • 5.2 HP Breakdown Torque
Jet Pump 3
  • Wavemaster® 9000
  • One-speed
  • 2.5 HP Continuous Duty
  • 5.2 HP Breakdown Torque
Circulation Pump
  • SilentFlo 5000® for quiet continuous filtration
Water Care System
  • FreshWater® III Corona Discharge (Included)
  • ACE® Salt Water Sanitizing System (optional)
  • or EverFresh® System (optional)
Effective Filtration Area
150 sq. ft., top-loading filters
Vinyl Cover
  • 3.5″ to 2.5″ tapered
  • 2 lb. density foam core with hinge seal
Vinyl Cover Colors
  • Caramel
  • Chestnut
  • Slate
  • Evergreen
Entertainment Systems (Optional)
  • Wireless Entertainment
Cover Lifters
  • CoverCradle® included
Steps (Optional)
  • Everwood®
  • Polymer

* Includes water and 7 adults weighing 175 lbs. each

Export models available in 240v, 50 Hz, 1500w Heater

Download Specs

Jets

Prism Jet System

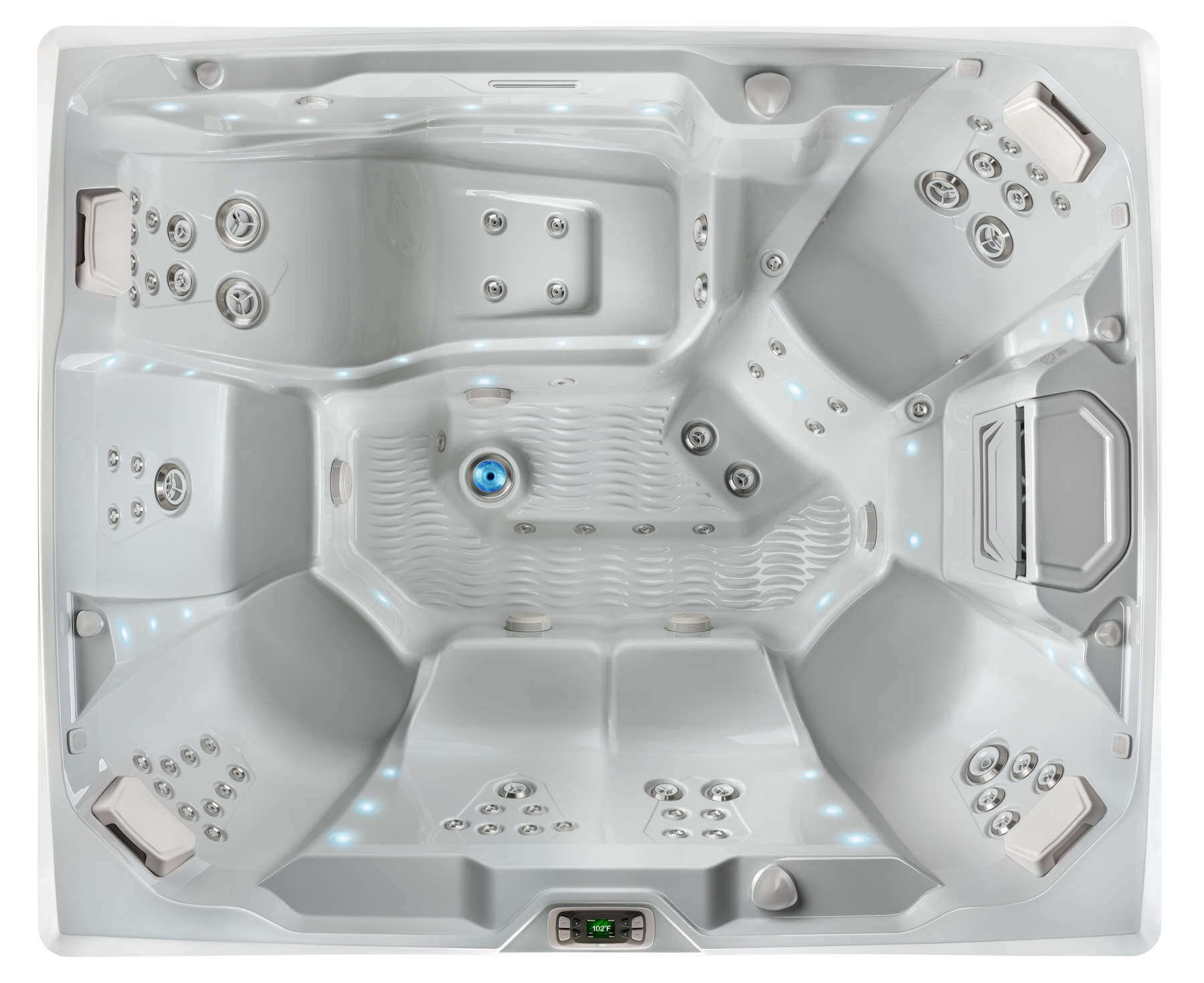

The Prism Jet System offers an incredible 73 jets that relieve tension in targeted areas including your back, neck, shoulders and feet.

Directional Precision jets

These jets soothe your back, neck and calves with adjustable nozzles for a customizable massage right where you need it:
Rotary Precision Jets
Standard Single Rotary Jets
Standard Dual Rotary Jets
Standard Directional Jets
XL Directional Jets
XL Single Rotary Jets
XL Dual Rotary Jets
XXL Footwell Jet

Spa Water

Spend more time in your spa and less time maintaining it. Limelight® models offer easy-to-maintain water care systems, including the ACE salt water system you cannot find anywhere else.

Patented ACE system uses a diamond electrode to automatically generate chlorine sanitizer and other powerful cleaners from salt and water. You’ll spend less time maintaining your spa water, use fewer bottled products which helps your spa water last longer between changes. This Hot Spring® exclusive is an option for all Limelight Collection spa models.

EverFresh water care system is a popular water care system among Hot Spring owners. The powerful combination of the FreshWater® III CD ozone system, FreshWaterAg+® Silver Ion Cartridge and MPS non-chlorine shock keeps spa water sparkling clean with reduced levels of chlorine. The FreshWater III ozone system is standard on all 2018 Limelight Collection spa models.
